MAX Laser Source Multi Beam Winding Laser Machine With Processing Width 7500mm*1700mm 3000W-6000W

Name: MAX Laser Source Multi Beam Winding Laser Machine With Processing Width 7500mm1700mm 3000W6000W
Brand: Kebei
Price: 50000 USD

Wholesale MAX Laser Source Multi Beam Winding Laser Machine With Processing Width 7500mm*1700mm 3000W-6000W from china suppliers

Brand Name : Kebei

Model Number : KL7517

Place of Origin : China

Certification : CE ROHS

MOQ : 1SET

Price : USD50000/SET

Packaging Details : Cabinet packing

Delivery Time : 25days

Payment Terms : FOB/EXW

Supply Ability : 3000/YEAR

Laser Type : Fiber Laser

Laser Head : Raytools

Positioning Accuracy : ±0.03mm

Control System : BOCHU

Processing Width : 7500mm*1700mm

Power Specifications : 380V/50HZ

Cooling Mode : Water Cooling

Software : BOCHU

Contact Now

Ezhou KEBEI Laser Co., Ltd. was established in 2006, with a production base located in the Gedian Economic and Technological Development Zone in the eastern part of Optics Valley. It covers an area of 60 acres, has a standardized factory building of 31000 square meters, and has nearly 400 employees, including nearly 70 research and development personnel

KEBEI is a high-tech company that integrates the research and development, production, and sales of laser equipment. The company is engaged in the development, production, and sales of intelligent laser processing equipment, including efficient laser processing products such as profile steel laser secondary processing lines, laser cutting machines, laser pipe cutting machines, and laser texturing machines. It is the source manufacturer of full process intelligent laser equipment.

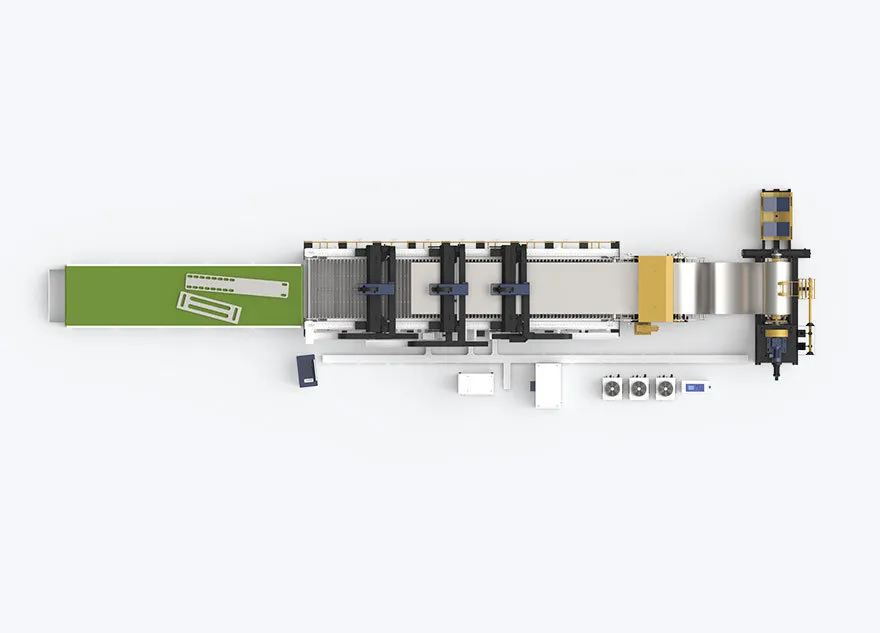

MAX Laser Source Multi Beam Winding Laser Machine With Processing Width 7500mm*1700mm 3000W-6000W

Open design, easy operation, smooth transmission, high precision, labor saving, efficiency improvement, coil feed cutting, and improved sheet utilization. Customizable production line on demand, flexible and convenient, high degree of automation.

serial number	Attributes	KB-13020N	KB-XXXXN
1	Processing format (length*width)	3000mm*2000mm	Customized
2	X-axis travel	2000mm
3	Y-axis travel	13000mm
4	Z axis travel	150mm	150mm
5	X/Y axis positioning accuracy	±0.03mm/m	±0.03mm/m
6	X/Y axis repeat positioning accuracy	±0.03mm	±0.03mm
7	XY maximum speed	120m/min	120m/min
8	Phase	3	3
9	Power Specifications	3/380V/50HZ	3/380V/50HZ
10	Total power protection level	IP54	IP54

MAX Laser Source Multi Beam Winding Laser Machine With Processing Width 7500mm*1700mm 3000W-6000W

Our production are transported by sea. we package and load it in the container then ship to foreignal country.

MAX Laser Source Multi Beam Winding Laser Machine With Processing Width 7500mm*1700mm 3000W-6000W

Q: If my machine is broken. Can you repair it for me?

A: Yes. We have free training online. If there is big trouble with your machine in the warranty time, we can repair it.

Q: What factors should be considered when choosing a laser cutting machine?

A: When choosing a laser cutter, consider factors such as the type of material being cut, required accuracy, speed, production cost and machine energy efficiency.
